AIR AND PARTICULATE FILTRATION
HVAC (AHU & FCU)
An HVAC filter is a filter that is used in a heating, ventilation and air conditioning system. The filter increases the efficiency and longevity of the HVAC system by protecting it from dust and airborne particles. It is therefore an integral, yet often overlooked part of the system. In addition to protecting the HVAC system from damage, some HVAC filters are designed to improve the quality of the interior air. HVAC filters work by providing a physical barrier between the air intake and the moving parts of the HVAC system.
Pre-Filters: Pre-Filters sift out the largest particles which will be running through your air purifier, which leaves the smallest particles to your main filter. These large particulates in the air include things like pet fur, dust, and a lot of the other things you can see floating around in the air.
MERV Filters: There are 16 MERV values, from 1 to 16, with the tested filter efficiency increasing as the MERV number increases. Filters are tested against 12 size ranges of particles, with the smallest range being around 0.3 micrometers, and the largest range around 10 micrometers. MERV 13 to 16 are effective at controlling airborne bacteria, most tobacco smoke and pollutants released through sneezing. Applicable in general surgery suites, smoking lounges and commercial buildings with superior HVAC systems.
HEPA Filters: HEPA Filters, which has several different levels, truly sifts out some of the smallest particles in the air, all the way down to 0.3 microns, while cleaning the air of more than 99.9% of the particulates from the air that passes through it.

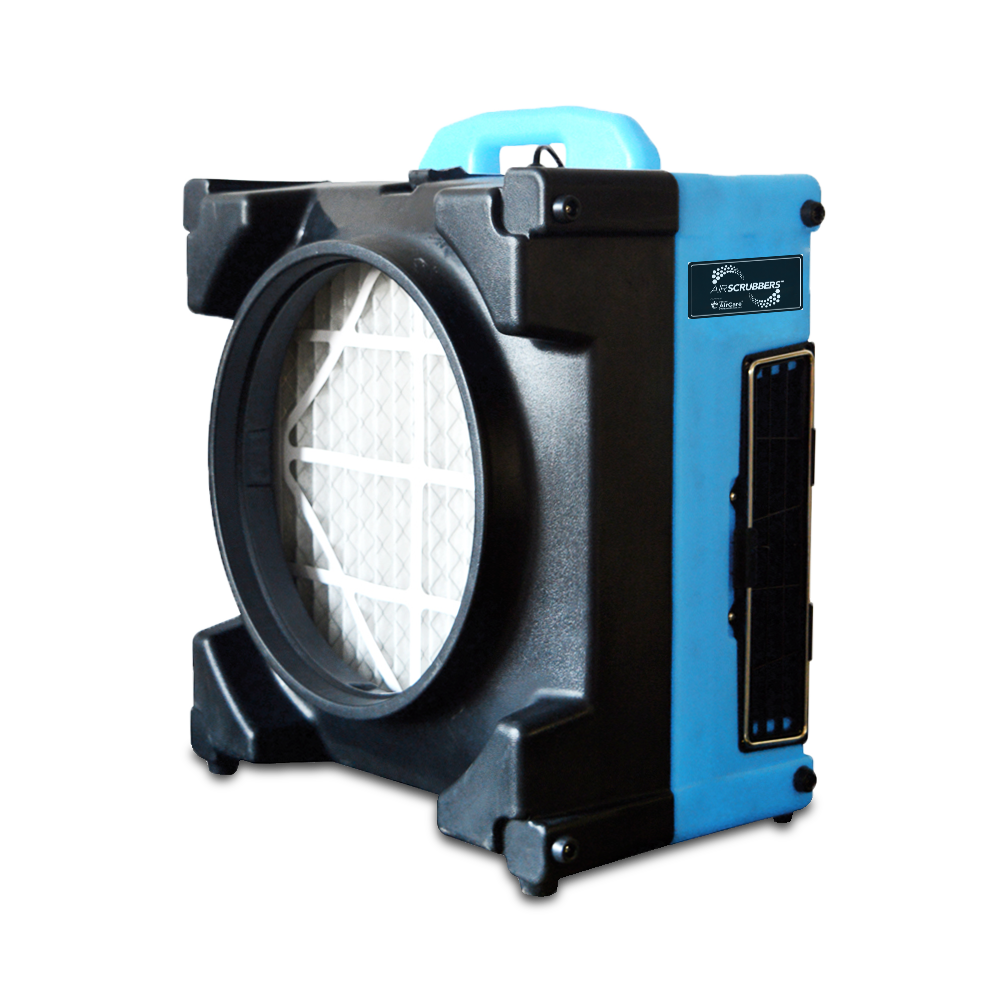

Air Scrubbers Mobile Filtration is a compact and portable solution to foul odors and hazardous indoor conditions. This is a compact and portable solutions for capturing fine particulate matter with the use high volume ventilation with medical grade H13 Hepa Filtration can be easily deployed to anywhere such as construction sites to hospitals to deal with excessive particulate build up in those areas and remove hazardous airborne particulates. The Air Scrubber delivers a maximum 800 CFM of HEPA filtered air, while drawing less than two amps of power.
Mobile Filtration

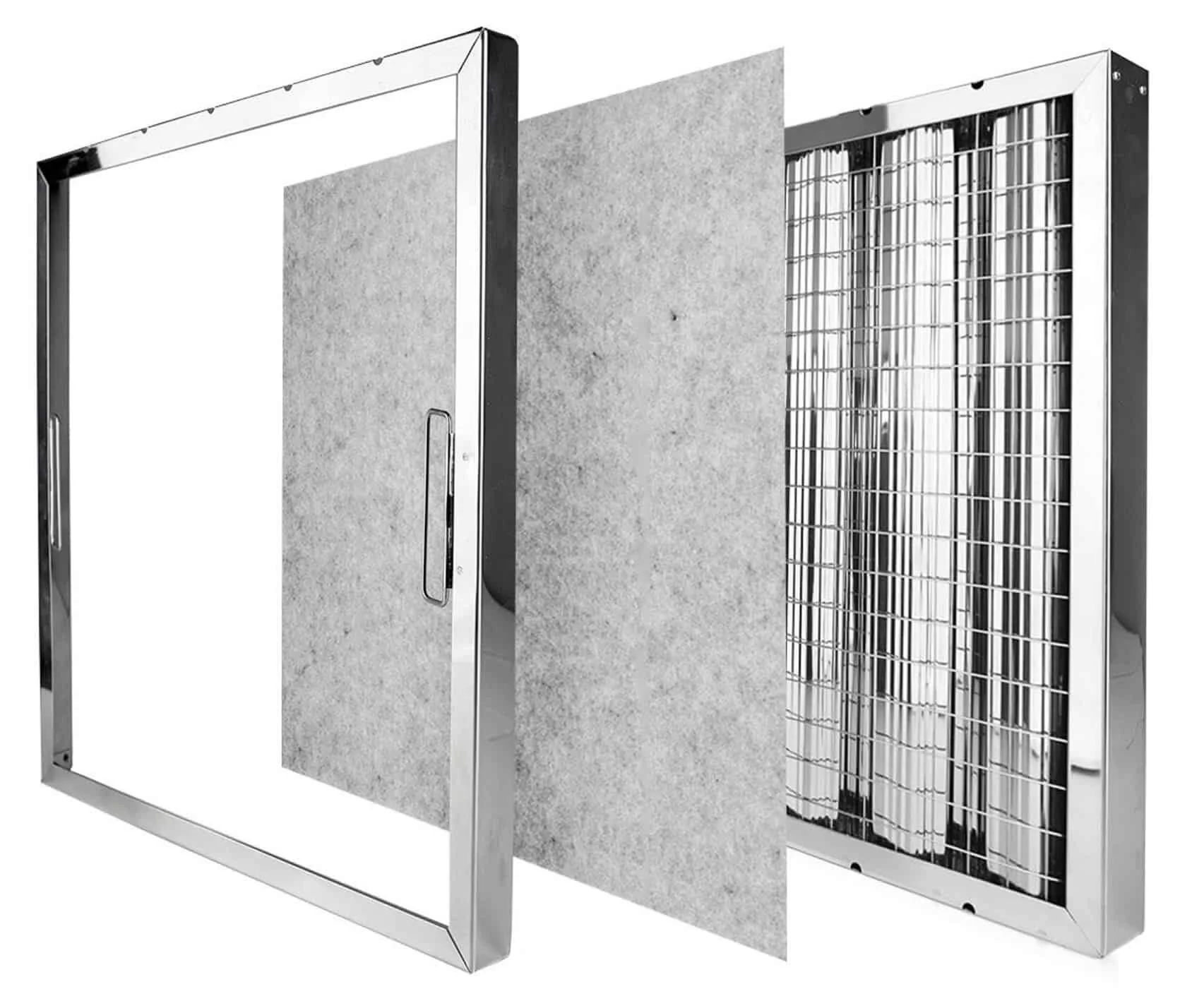

Grease and oil build-up starts at the metal kitchen grease filters before being extracted into the hood, ducting, fan and eventually, the roof. At best, these metal kitchen grease filters only capture between 20-40% of airborne grease, leading to a hazardous build-up that needs to be cleaned off on a regular basis in order to stay compliant and covered by insurance. It’s an ongoing problem that needed an easy and cost-effective solution.
Shepherd Filters capture up to an impressive 98% of grease before it even has the chance to penetrate the rest of the kitchen exhaust system.Made from 100% bio-degradable and fire-retardant wool, you can rely on Shepherd Filters to ensure your system stays cleaner for longer:
Save time & money | Reduce your fire risk & stay compliant | Minimize premature equipment failure | All whilst doing your part for the environment!
